Dong Shin 02.14.2015

  • checking off notes items…..
  • deployed new FR and reviewed with Lenny
  • notes from Lenny/Chris
    • change the order of buttons
    • POC’s should be user specfic, can be used from other FRs added by the same user
    • ISR PMO panel
      • Only admins can enter ISR PMO information
      • change ISR PMO POC to ISR PM
      • Req # is text, not drop down
      • Prior Req # comes from FA database
    • Project Description panel
      • add Project Lab PM after Project Lab
      • add text – Select the Service this project is supporting
    • Funding Description
      • Mailing Address not required from EA/REQ
    • Funding Details
      • hide Direct Cite/Reimbursable for EA/REQ
      • remove FY 10 from Appropriations
      • move Funding Type from Funding Description panel (copy?)
    • Contract Process
      • change FR Processing to Invoicing Processing Procedures
        • ACRN, Batch Processing, FIFO, Other
      • remove 100% funds required
      • change Explanation if Other to Invoice Instruction
    • Funding Requirement
      • single entry not multiple
      • remove Justification
      • Date Needed, Amount Needed, 100% Required to Obligate (Yes or No)
    • Contract Labor, Government Labor, Travel, Equipment/Material
      • add Contract # from Contract Details
      • Yes or No
    • Outlay Plan
      • remove Month 13-15
      • auto fill rest when 100%
      • check if value is > amount from Funding Details
    • Service Fee
      • Yes or No
      • Justification is textArea
    • FFRDC
      • Yes or No
      • hide when no
    • Contract Details
      • Yes or No
      • add Are any of the funds being required being placed on contract?

Phil 2.13.15

8:00 – 4:00 SR

  • Deploy new test FR today.
  • I think I realized the problem that we were having importing the cert yesterday. We need the original jks file from the keytool -genkey command. That (I believe) contains the public key that is used to create the certificate. From Oracle: If the public key in the certificate reply matches the user’s public key already stored with under alias, the old certificate chain is replaced with the new certificate chain in the reply. The old chain can only be replaced if a valid keypass, the password used to protect the private key of the entry, is supplied. If no password is provided, and the private key password is different from the keystore password, the user is prompted for it.
  • Change LoginPanel directive to use instanced TypeScript Object. Done, and it went quite well. The only thing to note is that fat arrow notation has to happen inside *every* function inside the scope (and as a quick aside, what happens if you break the chain? Can you have two scopes if you nest function(){}/()=>{} in the right way?). The compiler warns you about ambiguous ‘this’ cases, which is nice. It can look kins of wierd, though:
then( ():void => {
   scope.isValid = this.loginObj.response;
   if (this.loginObj.response) {
      scope.speak('new password for ' + this.loginObj.name + ' accepted');
   } else {
      scope.speak('new password for ' + this.loginObj.name + ' rejected');
   }
}, this.errorResponse);
  • Start porting threeJS canvas framework today.
    • Got the base module controller framework set up
    • Imported definatelytyped for threejs, which barfed a bit.
    • Discovered sizing relative to viewport here, which means that the following will fill up the browser window with a 5% whitespace border!
.glWindow{
    position: absolute;
    box-sizing: border-box;
    top: 5vh;
    left: 5vw;
    width: 90vw;
    height: 90vh;
    background-color: red;
}
  • While looking for how to get a canvas element, I found a (good?) TypeScript/WebGL series of posts here.
  • Yay!

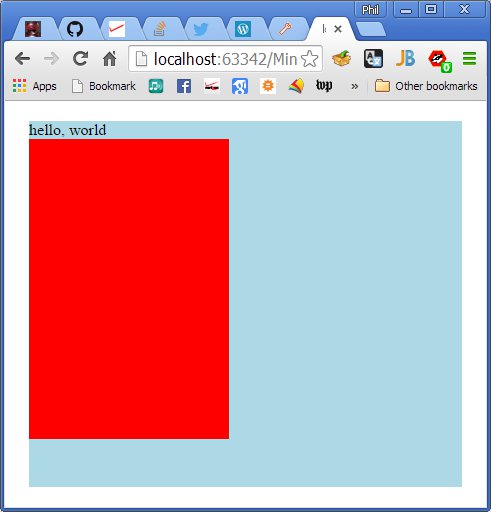

helloGL

Phil 2.12.14

Phil 8:00 – 6:30 SR

  • Meeting with Ronda today to discuss progress. We did some paperwork and tried valiantly but in the end unsuccessfully to get keytool working with our new certs.
  • Angular
    • Finished commenting and writing up what I’ve learned about TypeScript and Angular. It’s all in this post on my personal blog.
    • OK, deep breath. Time to get the WebGL code ported from YUI to TS/Angular. Starting with WebGLModulesTest.html, which uses WebGLCanvas.js and WebGLComponent.js.

Dong Shin 02.11.2015

  • working on FR
    • set all initial number to null so that validation works on 0
    • working on adding multiple pocs
      • added new table, point_of_contacts, to database, modified funding_request table
      • added server code
      • adding client

Phil 2.11.14

8:00 – 2:30 SR

  • Alert the media – there are no problems with the production system at all today. no requests, no messages, no nothing.
  • Angular. Need to drill down further into the ramifications of declaring functions using the public/private foo = (arg) =>{}; How does this manifest in EcmaScript6? Does this work with a static declaration? What about typing the return value? For that matter, do these methods inherit properly? I’m going to create a inherit5 file and try these things. In a perfect world, this pattern should collapse the problems with Factory and Directive.
    • EcmaScript 6: The Mozilla Developer Network discusses fat arrows here. The part about ‘lexical this is worth paraphrasing here:
      • Until arrow functions, every new function defined its own this value (a new object in case of a constructor, undefined in strict mode function calls, the context object if the function is called as an “object method”, etc.). This proved to be annoying with an object-oriented style of programming. In ECMAScript 3/5, this issue was fixed by assigning the value in this (e.g. self) to a variable that could be closed over. Arrow functions capture the this value of the enclosing context, so the following code works as expected.
function Person(){
  this.age = 0;

  setInterval(() => {
    this.age++; // |this| properly refers to the person object
  }, 1000);
}

var p = new Person();
      • So, according to this and as long as the proposal doesn’t change too much, I think we’re on stable ground
      • Set up Inherit5.html and Inherit5.ts. Pretty much everything works in the ‘best case’ way. The only issue is that Factories and Directives require a function that returns a directive for their initialization. The way to deal with that is to still have the ctor() method, but have it called differently:
      • new AngularMain().doCreate(angular, new InheritApp.TestFactory().ctor,...);
      • This creates an instance (with a this! Yay!), but still allows the angular code to create the directive its way. The full code is here:
  • 3:00 meeting in Hanover.
  • 4:30 class

Phil 2.10.15

8:00 – 4:00 SR

  • Discussed when to update PKIs on the servers with Ronda
  • Deployed a new version of FR for Dong
  • Discussed schedule with Chris
  • Angular,
    • Cleaned up the PasswordDirective to include an IloginObj interface and return types on all the functions inside linkFn() within the BaseLoginDirective class.
    • Working on example large controller
      • The ‘declare var’ trick of keeping TypeScript from complaining is only for external items that you set your local variables equal to. For example, the external Chrome function SpeechSynthesisUtterance  would be defined at the top of the TypeScript file that references as
        • declare var SpeechSynthesisUtterance:any;
      • Later, it gets used as
        • var querySpeech:any = new SpeechSynthesisUtterance();
      • It’s possible to build an interface for it (the entire idea behind definitelyTyped), but this is the way to get up and going quickly.
      • Callbacks have turned into a nightmare. A callback does not have a ‘this’ associated with it when it is called. As such, ANY OTHER MEMBER OF THE CLASS IS NOT AVAILABLE, since this is now ‘Window’ scope. See here for more info.
      • It all has to do with the way that TypeScript has to deal with the self = this problem. To tell TS (and implicitly EcmaScript 6), functions are created using ‘fat arrow’ notation (=>). In any case where you would be using ‘self’ rather than ‘this’ in JavaScript (i.e. nested functions), you need to use the fat arrow notation in TypeScript. In the case of an lambda function, it looks like this:
        • this.querySpeech.onend = (event:Event) => {
             this.queryService.submit(this.query, this.goodUserQuery, this.errorResponse);
          };
      • The generated Javascript looks like this:
        • this.querySpeech.onend = function (event) {
              _this.queryService.submit(_this.query, _this.goodUserQuery, _this.errorResponse);
          };
      • Note that rather than ‘self’ TypesScript has defined ‘_this’. It’s declared as you would expect it.
      • With respect to methods, the pattern in similar. Rather than declaring a method in the ‘default manner:
        • public runQuery(query:string){
             this.query = query;
             this.submit();
          };
      • A method should be declared as follows:
        • public runQuery = (query:string) => {
             this.query = query;
             this.submit();
          };
      • These result in very different JavaScript. The former generates a prototype:
        • QueryController.prototype.runQuery = function (query) {
              this.query = query;
              this.submit();
          };
      • While the latter generates a function that is within the ‘constructor’:
        • this.runQuery = function (query) {
              _this.query = query;
              _this.submit();
          };
      • As you can see, we know how things will work out with a callback in the second function because we’re using _this via closure. With the other JavaScript, things are much less clear – this could be global, or what apply would pass in. Scary.
      • I’m thinking that this way of calling functions is a better way of dealing with factories and directives. I’ll have to try that tomorrow.

Dong Shin 02.10.2015

  • deployed new FR.. few issues found.
  • working on FR
    • fixed Server returning 500 on FR save
    • set maxlength of the input’s to limit the length
    • modified few table columns
    • fixed validations in FR
    • updated Button labels
  • going down the Feedback list
    • moved the ISR PMO button to bottom
    • added Prior Year Req #
    • modified view, appropriations, to exclude the test values
    • set EBC required when funding type is EA or REQ
    • Explanation required when Other is selected in Contract Processing
    • Number of FTEs set to float in Contract Labor and database table
    • Number of FTEs set to float in Government Labor and database table
    • Justification required when Service Fee Amount > 0 in Service Fee
    • FFRDC control by response YES or NO
    • changing all references to Spend Plan to Outlay – client, server, database

Dong Shin 02.06.2014

Phil 2.5.15

8:00 – 6:00 SR

  • Lenny’s using the FR app. So far the only change is that the scheme for saving the project needs to change. Portfolio managers will probably be the last people to touch the submission, so save needs to be supported earlier.
  • Updated my resume to reflect my shiny new MS. I guess it’s a sign of the times, but I have a lot of resumes to update
  • Test TypeScript server access code. If that works, then change the login directive.
  • And it works! I had to change the calling function from this:
(function(angular, queryServicePtr, queryPtr, passwordDialogPtr, undefined) {
   "use strict";
   angular.module('phpConnection', [])
      .factory('QueryService', ['$http', queryServicePtr]);
   angular.module('queryApp', ['phpConnection'])
      .controller('MainCtrl', ['$http', 'QueryService', queryPtr])
      .directive('passwordDialog', ['$http', 'QueryService', passwordDialogPtr]);
})(
   angular,
   globalUtils.appMap.phpFactories.queryServicePtr,
   globalUtils.appMap.queryControllers.queryPtr,
   globalUtils.appMap.passwordDirectives.passwordDialogPtr
);
  • To this JavaScript version…
(function(angular, queryServicePtr, queryPtr, passwordDialogPtr, undefined) {
   "use strict";
   angular.module('phpConnection', [])
      .service('QueryService', ['$http', queryServicePtr]);
   angular.module('queryApp', ['phpConnection'])
      .controller('MainCtrl', ['$http', 'QueryService', queryPtr])
      .directive('passwordDialog', ['$http', 'QueryService', passwordDialogPtr]);
})(
   angular,
   PhpConnectionService.UrlAccess,
   globalUtils.appMap.queryControllers.queryPtr,
   globalUtils.appMap.passwordDirectives.passwordDialogPtr
);
  • And lastly, to TypeScript:
/// <reference path="../../definitelytyped/angularjs/angular.d.ts" />
/// <reference path="../../libs/novetta/services/phpConnectionService.d.ts" />
/// <reference path="../../libs/novetta/directives/PasswordDirectivesTS.d.ts" />

// we do this to accommodate the globalUtils JavaScript object from libs/novetta/globals/globalUtils.js
interface IGlobalUtils{
   appMap:any;
}
declare var globalUtils:IGlobalUtils;

module QueryApp {
   class AngularMain {
      serviceModule:ng.IModule;
      appModule:ng.IModule;

      public doCreate(angular:ng.IAngularStatic,
                  queryServicePtr:Function,
                  queryControllerPtr:Function,
                  passwordDialogPtr:Function){

         this.serviceModule = angular.module('phpConnection', []);
         this.serviceModule.service('QueryService', ['$http', queryServicePtr]);

         this.appModule = angular.module('queryApp', ['phpConnection']);
         this.appModule.controller('MainCtrl', ['$http', 'QueryService', queryControllerPtr]);
         this.appModule.directive('passwordDialog', ['QueryService', passwordDialogPtr]);
      }
   }

   new AngularMain().doCreate(angular,
      PhpConnectionService.UrlAccess,
      globalUtils.appMap.queryControllers.queryPtr,
      PasswordDirectives.BaseLoginDirective.ctor
   );
}
  • That’s it!
  • Now, for completeness, here’s the full TypeScript module with the UrlAccess service:
/// <reference path="../../../definitelytyped/angularjs/angular.d.ts" />

module PhpConnectionService{

   export interface IUrlAccess{
      setPasswordUrl(newUrl:string):void;
      setQueryUrl(newUrl:string):void;
      getPasswordUrl():string;
      getQueryUrl():string;
      submit(query:string, goodResponse:any, errorResponse:any):ng.IPromise<any>;
   }

   export class UrlAccess implements IUrlAccess{
      private passwordUrl:string = 'iopass.php';
      private queryUrl:string = 'io2.php';
      private httpService:ng.IHttpService;

      constructor($http:ng.IHttpService){
         this.httpService = $http;
      }

      static buildParams(obj:any):string {
         var query:string = '';
         var name:string;
         var value: any;
         var fullSubName:string;
         var subName:string;
         var subValue:any;
         var innerObj:any;
         var i:number;

         for(name in obj) {
            if(obj.hasOwnProperty(name)) {
               value = obj[name];

               if(value instanceof Array) {
                  for(i = 0; i < value.length; ++i) {
                     subValue = value[i];
                     fullSubName = name + '[' + i + ']';
                     innerObj = {};
                     innerObj[fullSubName] = subValue;
                     query += UrlAccess.buildParams(innerObj) + '&';
                  }
               }
               else if(value instanceof Object) {
                  for(subName in value) {
                     if(value.hasOwnProperty(subName)) {
                        subValue = value[subName];
                        fullSubName = name + '[' + subName + ']';
                        innerObj = {};
                        innerObj[fullSubName] = subValue;
                        query += UrlAccess.buildParams(innerObj) + '&';
                     }
                  }
               }
               else if(value !== undefined && value !== null) {
                  query += encodeURIComponent(name) + '=' + encodeURIComponent(value) + '&';
               }
            }
         }

         return query.length ? query.substr(0, query.length - 1) : query;
      }

      public setPasswordUrl(newUrl:string):void{
         this.passwordUrl = newUrl;
      }

      public setQueryUrl(newUrl:string):void{
         this.queryUrl = newUrl;
      }

      public getPasswordUrl():string{
         return this.passwordUrl;
      }

      public getQueryUrl():string{
         return this.queryUrl;
      }

      public submit(query:string, goodResponse:any, errorResponse:any):ng.IPromise<any> {
         var upstring:string = encodeURI("query=" + query);
         var upObj:ng.IRequestConfig = {
            url: this.getQueryUrl(),
            method: "POST",
            data: upstring,
            headers: {'Content-Type': 'application/x-www-form-urlencoded'}
         };
         return this.httpService(upObj).then(goodResponse, errorResponse);
      }

      public setPassword(userName:string, userPassword:string, goodResponse:any, errorResponse:any):ng.IPromise<any> {
         var postObj = {query: 'set_password', name: userName, password: userPassword};
         var upObj = {
            url: this.getPasswordUrl(),
            method: "POST",
            data: postObj,
            headers: {'Content-Type': 'application/x-www-form-urlencoded'},
            transformRequest: UrlAccess.buildParams
         };

         return this.httpService(upObj).then(goodResponse, errorResponse);
      }

      public checkPassword(userName:string, userPassword:string, goodResponse:any, errorResponse:any):ng.IPromise<any> {
         var postObj = {query: 'check_password', name: userName, password: userPassword};
         var upObj = {
            url: this.getPasswordUrl(),
            method: "POST",
            data: postObj,
            headers: {'Content-Type': 'application/x-www-form-urlencoded'},
            transformRequest: UrlAccess.buildParams
         };

         return this.httpService(upObj).then(goodResponse, errorResponse);
      }
   }
}
// we do this to accommodate the globalUtils JavaScript object from libs/novetta/globals/globalUtils.js
interface IGlobalUtils{
   appMap:any;
}
declare var globalUtils:IGlobalUtils;
  • So now we have the main calling app done in TS.

Dong Shin 02.04.2014

  • successfully deployed FR!
    • database dump doesn’t have AUTO_INCREMENT, PRIMARY KEY in it…
    • login service returns SUCCESS for invalid login – modified the script to show alert…
  • FMP bugs from Gina?
  • fixed /users/login to return HttpStatus.FORBIDDEN when user is not found
  • going through Spring Tutorial

Dong Shin 02.03.2015

  • deployed new FR stuff – logging work, but login doesn’t!
    • /login goes to SimpleUrlHanderMapping instead of FilterChainProxy
    • copied Phil’s Tomcat config and tried, runs fine….
  • using User object for login – rest/users/login
  • changed login in Services
