8:00 – 11:30 SR

• Backups
• Training

11:30 – 4:00 FP

• Basically spent the whole day figuring out how the 4×4 phantom matrix equates to the rendering matrix (I would have said OpenGL, but that’s not true anymore. I am using the lovely math libraries from the OpenGL SuperBible 5th Edition, which makes it kinda look like the OGL of Yore. Initially I thought I’d just use the vector components of the rotation 3×3 from the Phantom to get the orientation of the tip, but for some reason, parts of the matrix appear inverted. So instead of using them directly, I multiply the modelviewmatrix by the phantom matrix, Amazingly, this works perfectly. To make sure that this works, I rendered a sphere at the +X, +Y and +Z axis in the local coordinate frame. Everything tracks. So now I can create my gripper class and get the positions of the end effectors from the class. And since the position is in the global coordinate frame, it kind of comes along for free,

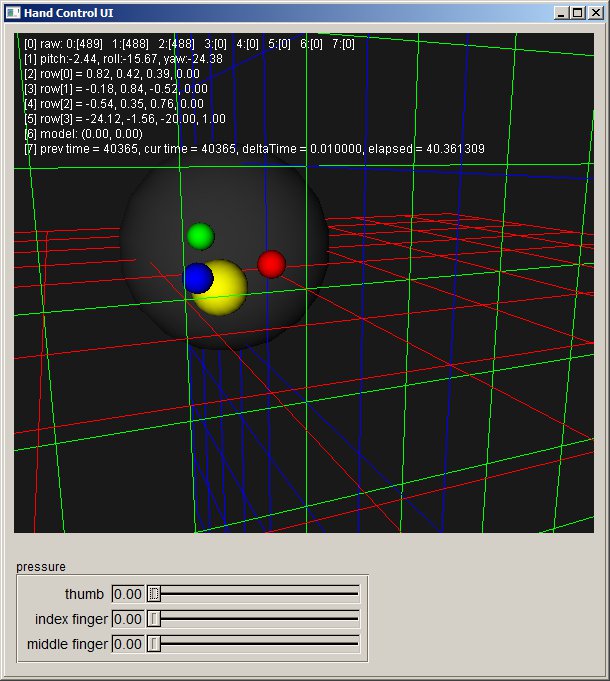

• Here’s a picture of everything working:
•
• Tomorrow, I’ll build the gripper class and start feeding that to the Phantom. THe issue will be to sum the force vectors from all the end effectors in a reasonable way.

8:00 – 10:00 SR

• Backups
• Sent a note to the system security folks asking to clarify what I was responsible for installing on my virtual server.
• Need to do a status report for Tangie
• Got tooltips for RA/FA
• Meeting with Chris and Lenny. Mostly we discussed the issue of bad data in Cognos.

10:00 – 4:00

• Integrating Phantom

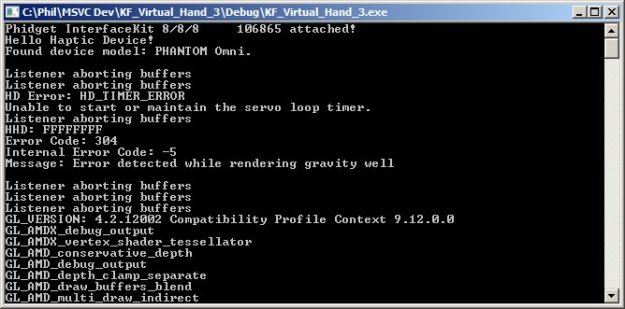

• Code is in and compiling, but there are mysterious errors:
•
•
• I think I need a more robust startup. Looking at more examples….
• Hmm. After looking at other examples, the HD_TIMER_ERROR  problem appears to crop up for anything more than trivially complex. Since both programs seem to run just fine by themselves, I’m going to make two separate executables that communicate using Named Shared Memory. Uglier than I wanted, but not terrible.
• Created a new project, KF_Phantom to hold the Phantom code
• Stripped out all the Phantom (OpenHaptics) references from the KF_Virtual_Hand_3 project;
• Added shared memory to KF_Phantom and tested it by creating a publisher and subscriber class within the program. It all works inside the program. Next will be to add the class to the KF_VirtualHand project (same code, I’m guessing? Not sure if MSVC is smart enough to share). Then we can see if it works there. If it does, then it’ll be time to start getting the full interaction running. And since the data transfer is essentially memcpy, I can pass communication objects around.

8:00 – 10:00 SR
