Tom DeVito 2.21.2012

Start: 9:00

  • Successfully passed data across the wire using the data dictionary
  • Working on figuring out a way to track if data is changed.  A method within the Data Dictionary to change the data can accomplish this.  The problem is locking manual sets.  Phil suggested using const variables.  This seems to work in a sense but I am not sure how to change it later.  I am thinking the parameter in the set method will have to be cast to whatever type the data is supposed to be.
  • Started working on the arduino controllers.  Need to ask Phil how he wants the data output.

End: 5:00

Phil 2.21.12

8:30 – FP

  • Reworking Gl_ShaderWindow so that it renders to a texture. Slow, slow progress.
  • Downloaded the code that goes with the OpenGL 4.0 Shading Cookbook. They seem to be using screen-aligned quads, which is more in line with the blur example. Going to work with that for a while.
  • Made a copy of the pix_buffs demo, and am now trying to simplify

Tom DeVito 2.20.2012

Start: 9:30

  • Increased my echo test to do 1000 passes to see if it would continue to run consistently.  The RTS state still seems to be sending too many times on pass back from the PC.  I was kinda in a rush when I finally got this working on friday, its possible I only fixed this on the arduino side.  When this was happening on the arduino, the buffer was becoming completely corrupted because it was overflowing.
  • This problem seems to have resolved itself.  I think the PC library was never rebuilt after I solved the problem.
  • Changed the has data test condition so that data starting with 0 would still work.
  • Strangely, if you try to receive a packet of 128 bytes on the arduino, the serial.available() method never returns true, so nothing is read.  However, if you send a 127 byte packet and then send a 1 byte messages and have separate calls to the read method for each, it doesn’t have a problem with this.  This might be a bug in the serial class but I want it to work this way so its no big deal.
  • Flushing the arduinos send buffer after each send causes some issues when the PC was running without delay.
  • Added the capability to send data buffers larger then 127.  Since the arduino will not let me send 128 bytes at a time, the max buffer size is 508 instead of 512.
  • Moved the Data Dictionary into the Communication library since it is necessary for sending of data easily.
  • Refreshed my memory on how the import and sending remote data should work.
  • Changed these methods to work with the updated comutil methods.

End: 5:30

Phil 2.20.12

9:30 – 3:00 FP

  • Biting the bullet and installing R on fgmdev. Installed, and working on getting all the packages in.
  • Installed the folllowing
    • install.packages(“Rserve”)
    • apt-get install r-cran-car then library(car)
    • install.packages(“vcd”)
    • apt-get install r-cran-gplots then library(gplots)
    • install.packages(“pwr”)
  • had to re-run library(gplots) so that plotmeans was visible correctly
  • After installing all the packages, I bounced Rserve, and then remembered that I had to bounce tomcat. Which took a *while* to restart.
  • everything appears to be running correctly 🙂

Here’s the current list:

Packages in library '/usr/local/lib/R/site-library':

colorspace              Color Space Manipulation
mvtnorm                 Multivariate Normal and t Distributions
pwr                     Basic functions for power analysis
Rserve                  Binary R server
vcd                     Visualizing Categorical Data

Packages in library '/usr/lib/R/site-library':

car                     Companion to Applied Regression
gdata                   Various R programming tools for data
                        manipulation
gplots                  Various R programming tools for plotting data
gtools                  Various R programming tools
multcomp                Simultaneous Inference in General Parametric
                        Models
mvtnorm                 Multivariate Normal and t Distributions

Packages in library '/usr/lib/R/library':

base                    The R Base Package
boot                    Bootstrap R (S-Plus) Functions (Canty)
class                   Functions for Classification
cluster                 Cluster Analysis Extended Rousseeuw et al.
codetools               Code Analysis Tools for R
datasets                The R Datasets Package
foreign                 Read Data Stored by Minitab, S, SAS, SPSS,
                        Stata, Systat, dBase, ...
graphics                The R Graphics Package
grDevices               The R Graphics Devices and Support for Colours
                        and Fonts
grid                    The Grid Graphics Package
KernSmooth              Functions for kernel smoothing for Wand & Jones
                        (1995)
lattice                 Lattice Graphics
MASS                    Main Package of Venables and Ripley's MASS
methods                 Formal Methods and Classes
mgcv                    GAMs with GCV smoothness estimation and GAMMs
                        by REML/PQL
nlme                    Linear and Nonlinear Mixed Effects Models
nnet                    Feed-forward Neural Networks and Multinomial
                        Log-Linear Models
rpart                   Recursive Partitioning
spatial                 Functions for Kriging and Point Pattern
                        Analysis
splines                 Regression Spline Functions and Classes
stats                   The R Stats Package
stats4                  Statistical Functions using S4 Classes
survival                Survival analysis, including penalised
                        likelihood.
tcltk                   Tcl/Tk Interface
tools                   Tools for Package Development
utils                   The R Utils Package
  • Came upon an interesting thing: http://rapache.net/ it’s a pretty slick VISIBILITY-ish looking thing. Need to spend some time figuring out how it works. Not all that clear yet.
  • OK, back to shaders and such.
  • And I just got why rendering the entire scene to a framebuffer that you then process is important. It’s because you can post process the texture (i.e. the entire scene) to get blur, bloom, and other effects. Cool. Well, I know what I’m doing tomorrow.

Tom DeVito 2.17.2012

Start: 10:00

  • Before I tried sending a buffer over the wire, I checked to make sure the loadBuffer method was working as I had made changes since the last time testing.
  • Loaded the test data into 2 test buffers using for loops.  I completely forgot that you can initialize and increment multiple variables within the for statement.  That could save some typing in the future.
  •   Between yesterday and today’s problems with printing chars which have numeric values stored in them, I decided to change all chars to unsigned 8-bit integers.  When I moused over the windows and arduino send methods, I found this was the default type.
  • I did not know that c had a special data type for size(size_t).  It seems compatible with the most common int types.
  • The array was not printing out the proper results.  It was kind of dumb in retrospect, but I had a variable involved with the initialization of the counter and loop condition, incrementing with the loop.  I took this out of the loop and added it to the size and the problem was resolved.
  • After a lot of work I got the states to change properly when receiving data.  The data on the other hand is messed up.
  • Tried sending the data from the arduino to the pc this time.  The data is transfering up but the first  two bytes seem to be extra communication data.  This is also knocking the message to the wrong place in the buffer.  Found the culprits and took them out.  This works now 🙂
  • Echo test is now working.  I needed to reduce the buffer to find out that there was a message being sent while the other side was trying to process.  Fixed this, I should be able to set the buffer back to 128.
  • Both directions are working without corruption.  Currently this only works for 1 packet of data.

End: 5:30

Mike 2.17.2012

  • Still trying to get a hold of Denise Price regarding the SSP requests she mentioned to Brian
  • Regarding the issues Tangela was having:
    • A fix for the auto-fill is deployed
    • I was able to create a funding request, Tangela was also able to as well, Christina is still having trouble
  • Trying to get Kristi and Dong VRs
  • Studying the basics of the Spring framework

Mike 2.15.2012

Post delayed due to switching servers.

  • Documenting workspace set up guide for Eclipse, GWT, Maven, and Spring
  • Contacted Denise Price regarding SSP changes
  • Spoke with Tangela Hall regarding several issues with the Vis Tool:
    • Auto-fill is no longer functioning in PPM
    • Some confusions regarding project and line item status, this may turn in to a feature request
    • Create Funding Request seems to be broken at site but functioning fine here, I will investigate more tomorrow

Phil 2.17.12

8:30 – FP

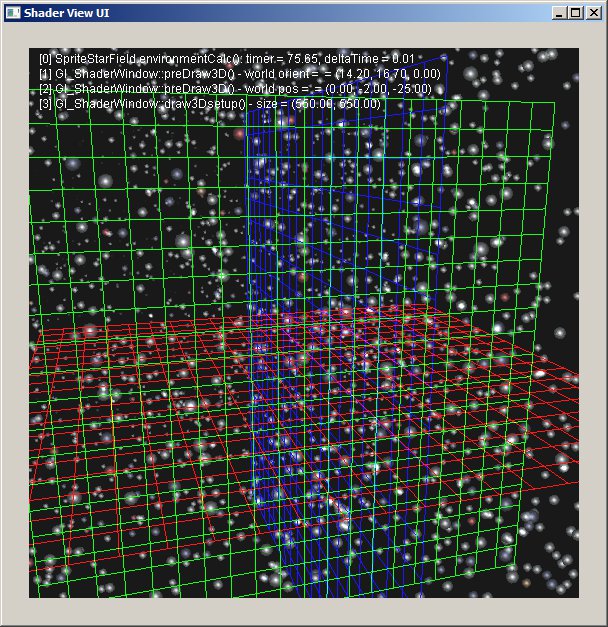

  • Started off the day with sprites. Here’s a starfield:
  • The neat thing about this is that the stars are handled as sprites, which means that it’s possible to handle text overlay with a shader now. I think that the way it could be done would be to create a single grid with all the characters and pass that to the vertex shader with the XY index and size of the letter. The vertex shader moves the texture so that the letter is centered and then passes off the texture and size to the fragment shader, which clips the output so only the particular letter is shown. Not going to do that yet, but it’s probably the first tool after I finish the book.
  • Worked my way through the pixBuffer/motion blur section, but I don’t think it’s worth incorporating into the framework.

Tom DeVito 2.16.2012

Start: 9:30

  • Confirmed that the PC is not sending data by opening the serial console in the arduino IDE and sending 1 byte manually.  The arduino’s receive light blinked and the sending light turned on continuously as expected.  It has occurred to me, that it should not be sending messages continuously.
  • Now that the state machine is in better order, I can make the initialization non-blocking.  This was a untested, temporary solution and may be the cause of the PC not sending.
  • Made a change to the windows ComMgr so it will return false if the port does not open properly.  This will trigger an ERROR state, which will print out a “cannot open port” message from ComUtil.  The arduino, being the slave, does not need to worry about this.
  • Sending messages and state changes are now only done after a message is received.  The computer will send the first message on initialization.  Once this happens they will take turns updating each other on their states.  This will hopefully fix the problem with a constant stream of messages.
  • On testing the changes, I have found that the port is opening properly but windows is still not sending anything.  I did make a change to the way the send method works, so maybe I broke it.  The remote state is now properly reporting 0, which is the default state if no message is received.  For some reason, it was reporting 13 before, which made no sense as its not even a valid state.
  • Manual testing of the Arduino with serial console shows that it is now only sending when it receives a message.  The response seems to be corrupted though.    Maybe I am just sending bad data.
  • Found that I was casting the message char as a char*, instead of passing the reference to the char(&char).  Continuing to test with the arduino, but this may solve the windows not sending problem.
  • Tried an echo test once I saw the ardino’s state was not changing.  For some reason it echos back the ascii code.  When the value is set internally it successfully sets and returns ‘0’ but when I send ‘0’ it returns 48.
  • Received data was not being cast to char.  Considering this feeds into a character array which is later ingested by data dictionary, this is actually very important.  This might be the source of all the problems I have had with prior attempts.  The PC would receive good data from anything originating in the arduino, while the data which depended on the PC communication would come back corrupted.  This gave the illusion it was working when I was looking at sensor data.
  • Defined states needed to be characters so I had to put single quotes around them.  I was doing the states differently before.
  • Tested states and it seems to be good for the most part.  There are some possible conflicts with messages and data which need to be resolved.  Since I made it so the packets are 127 bytes instead of 128, I can put the message at the beginning of the packet.
  • Changed and traced the logic of the states.  This was tricky but I think I got something that will work now.
  • Set up testing for large data passing.  I will start this tomorrow.

End: 5:30

Phil 2.16.12

8:30 – 4:30 FP

    • Reflection cube maps today
    • And they are working! The trick to handling rotating reflections is the following (note that the camera matrix is determined before the model roation, and the surface normal is calculated after the rotation.):
	M3DMatrix44f mCameraRotOnly;
	M3DMatrix44f mInverseCamera;
	M3DMatrix33f mNormalMat;

	const M3DMatrix44f &mCamera = modelViewStack.GetMatrix();

	modelViewStack.PushMatrix();
		modelViewStack.Rotate(angle, 0.0f, 1.0f, 0.0f);

		orient44fromMat44(mCameraRotOnly, mCamera);
		orient33fromMat44(mNormalMat, modelViewStack.GetMatrix());
		m3dInvertMatrix44(mInverseCamera, mCameraRotOnly);

		projectionStack.PushMatrix();
			projectionStack.MultMatrix(modelViewStack.GetMatrix());
			glUseProgram(reflectionShader);
			glUniformMatrix4fv(locMVPReflect, 1, GL_FALSE, projectionStack.GetMatrix());
			glUniformMatrix4fv(locMVReflect, 1, GL_FALSE, modelViewStack.GetMatrix());
			glUniformMatrix3fv(locNormalReflect, 1, GL_FALSE, mNormalMat);
			glUniformMatrix4fv(locInvertedCamera, 1, GL_FALSE, mInverseCamera);
			triangleBatch.Draw();
			glUseProgram(NULL);
		projectionStack.PopMatrix();
	modelViewStack.PopMatrix();
  • It seems to be a nice day for pretty pictures. Here’s an example of multitexturing:
  • And now that our connection is better, maybe I’ll install R on fgmdev

Tom DeVito 2.15.2012

Start: 9:30

  • Made a lot of small changes to fix minor issues and finished some methods which were missing parts.
  • Tried testing it.  Seems that the sendData is not working at the moment.  The light did not light up on the arduino.
  • I was testing it outside the library before.  It seems the port is not opening properly from inside the library.  I thought this might have to do with members of static libraries not being able to have instance of classes in them, but Phil told me that’s most likely not the case.
  • Its a bit tricky to make a library project into an exe for testing so I might just copy all the classes into an exe project.
  • I am wondering if I would be able to test the communication with another windows machine hooked up by usb.  This would be a better way to troubleshoot as I could easily display outputs.  I am not sure how both machines would open the port though.

End: 6:00



Phil 2.15.12

8:30 – 4:30 FP

  • Making good, albiet slow progress on shaders. It’s kind of like programming in pre IDE-days; edit in vim then submit to the GPU compiler for a cryptic message. On the list of things to do is a framework that allows for the more sophisticated editing of shaders in the context of a running program. Will probably do this is Java for eclipse. Looks like there’s a starting point here: http://glshaders.sourceforge.net/
  • Nice progress so far. Let’s see if this video uploads…
  • solarSystem
  • Useful post on how to make a skybox with photoshop: http://www.interlopers.net/forum/viewtopic.php?f=44&t=31549
  • Going to set up a new project – ShaderLearning2
    • Use frame this time in Gl_ShaderWindow. Nope, I need Euler Angles for this.
  • Need to install R on the new server.

Tom DeVito 2.14.2012

9:30 -2:00 Tech support

  • After many e-mails and phone calls, it looks like the server is now operational and fgmdev.com is pointing to it.  We still need to transfer domain ownership once we get a account with http://www.enom.com
  • Everything is the same on the new server; if you need to ftp, make sure your using sftp.
  • I need to figure out how to reset RSA key so I can SSH in.  Just noticed this at the end of the day, so I’ll look into it tomorrow
  • Noticed the printer had printed out a bunch of junk last night.  I am not sure why this happened,  but I found that there was a firmware update, dated sometime last month.  Hopefully it works better in the future in general
  • Called Comcast about outages, looks like they finally got around to fixing the problem

2:00-5:30

  • I think I finally got the state machine working right.  I will have to examine this more closely tomorrow.

char ComUtil::changeState()
{

if(_rState == RTS && (_lState == READY || _lState == DONE))  //Receiving states  I think it is important that this is checked first
_lState = CTS;
else if(_rState == SENDING && _lState == CTS)
_lState = RECEIVING;  //Stay in this state til all packets are sent

else if(_hasData == true && (_lState == READY || _lState == DONE)  && (_rState == READY || _rState == DONE))  //This state only happens on first send of if the receiver has nothing to send.  Finished Processing automatically put the receiver into a RTS state if it has data
_lState = RTS;
else if(_rState == CTS && _lState == RTS)
_lState = SENDING;

else if(_rState == SENDING && _lState == ACKNOWLEDGE)
_lState = RECEIVING;
else if(_rState == ACKNOWLEDGE && _lState == WAITING)
_lState = SENDING;
else if(_rState == DONE && _lState == ACKNOWLEDGE)  //When the last packet is sent the sender goes into a DONE state
_lState = PROCESSING;

return _lState;
}

  • This method feeds into a switch statement which looks for SENDING and RECEIVING states.  These two states require more then a simple change of state, which is why they are processed separately.  Once one side sends something it goes into a WAITING, depending on how many packets are to be sent.  It will stay in that state til it gets an ACKNOWLEDGE from the other side.  Likewise if the local state is RECEIVING, it will change to ACKNOWLEDGE after it receives.  On the last packet sent, the sender goes to a DONE state which triggers the receiver to go to a PROCESSING state.  It stays in the PROCESSING state til an external element calls the finishedProcessing() method.  Once finished processing, the receiver goes into either a RTS or DONE state, depending on if it has data.
  • Added a public boolean method called isProcessing(), so the data dictionary will know when it needs to ingest data.
  • If the sender goes into a DONE state after the  last packet sent, number of packets sent does not need to be sent across the wire.  This means each message is only 1 byte, as only the state needs to be sent.
  • The inclusion of the WAITING and ACKNOWLEDGE states, should fix the problems I found while testing on Monday, where it was sending more data before the other side was ready.

End: 5:30

Dong Shin 02.10.2011

  • Spring Roo doesn’t parse complex tables (and relations) correctly. Somehow it throws exceptions when try to access some tables. Looking at other things.
  • Sidetracked to Spring, Hibernate, Struts2 training
    • very good video tutorial at http://javabrains.koushik.org/ (long, really long)
    • Hibernate Tools has capability to reverse engineer database
    • sample Hibernate project using MySQL
      • svn://fgmdev.com/trunk/Sandbox_folders/DONG_SANDBOX/HibernateProj
  • putting Maven, GWT, Spring, Hibernate together
